#include <stdint.h>
#include "stm32h7xx.h"

Include dependency graph for gpio.h:

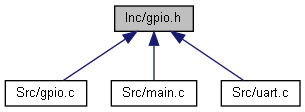

This graph shows which files directly or indirectly include this file:

Macros
#define	GPIO_IN_MODE (0x0)

#define	GPIO_OUT_MODE (0x1)

#define	GPIO_ALT_MODE (0x2)

#define	GPIO_ANALOG_MODE (0x3)

#define	GPIO_ALT_FUN_00 (0x0)

#define	GPIO_ALT_FUN_01 (0x1)

#define	GPIO_ALT_FUN_02 (0x2)

#define	GPIO_ALT_FUN_03 (0x3)

#define	GPIO_ALT_FUN_04 (0x4)

#define	GPIO_ALT_FUN_05 (0x5)

#define	GPIO_ALT_FUN_06 (0x6)

#define	GPIO_ALT_FUN_07 (0x7)

#define	GPIO_ALT_FUN_08 (0x8)

#define	GPIO_ALT_FUN_09 (0x9)

#define	GPIO_ALT_FUN_10 (0xA)

#define	GPIO_ALT_FUN_11 (0xB)

#define	GPIO_ALT_FUN_12 (0xC)

#define	GPIO_ALT_FUN_13 (0xD)

#define	GPIO_ALT_FUN_14 (0xE)

#define	GPIO_ALT_FUN_15 (0xF)

Functions
void	GPIO_SetPinMode (GPIO_TypeDef *GPIOx, uint32_t Pin, uint32_t Mode)

void	GPIO_SetPinAltFun (GPIO_TypeDef *GPIOx, uint32_t Pin, uint32_t AltFun)

Macro Definition Documentation

◆ GPIO_ALT_FUN_00

#define GPIO_ALT_FUN_00 (0x0)

◆ GPIO_ALT_FUN_01

#define GPIO_ALT_FUN_01 (0x1)

◆ GPIO_ALT_FUN_02

#define GPIO_ALT_FUN_02 (0x2)

◆ GPIO_ALT_FUN_03

#define GPIO_ALT_FUN_03 (0x3)

◆ GPIO_ALT_FUN_04

#define GPIO_ALT_FUN_04 (0x4)

◆ GPIO_ALT_FUN_05

#define GPIO_ALT_FUN_05 (0x5)

◆ GPIO_ALT_FUN_06

#define GPIO_ALT_FUN_06 (0x6)

◆ GPIO_ALT_FUN_07

#define GPIO_ALT_FUN_07 (0x7)

◆ GPIO_ALT_FUN_08

#define GPIO_ALT_FUN_08 (0x8)

◆ GPIO_ALT_FUN_09

#define GPIO_ALT_FUN_09 (0x9)

◆ GPIO_ALT_FUN_10

#define GPIO_ALT_FUN_10 (0xA)

◆ GPIO_ALT_FUN_11

#define GPIO_ALT_FUN_11 (0xB)

◆ GPIO_ALT_FUN_12

#define GPIO_ALT_FUN_12 (0xC)

◆ GPIO_ALT_FUN_13

#define GPIO_ALT_FUN_13 (0xD)

◆ GPIO_ALT_FUN_14

#define GPIO_ALT_FUN_14 (0xE)

◆ GPIO_ALT_FUN_15

#define GPIO_ALT_FUN_15 (0xF)

◆ GPIO_ALT_MODE

#define GPIO_ALT_MODE (0x2)

◆ GPIO_ANALOG_MODE

#define GPIO_ANALOG_MODE (0x3)

◆ GPIO_IN_MODE

#define GPIO_IN_MODE (0x0)

◆ GPIO_OUT_MODE

#define GPIO_OUT_MODE (0x1)

Function Documentation

◆ GPIO_SetPinAltFun()

void GPIO_SetPinAltFun	(	GPIO_TypeDef *	GPIOx,
		uint32_t	Pin,
		uint32_t	AltFun
	)

Set the alternate function of the pin. There are 2 registers to be addressed. It depends on the pin location and it is valid for each GPIO port.

Pins 00-07 are in ARFL
Pins 08-16 are in ARFH
Parameters

[in] GPIOx GPIO Handler

[in] Pin [e.g. pin 8 is 0b 0000 0000 0000 0000 0000 0001 0000 0000]

[in] AltFun [e.g. Alternate Function 9 is 0b 0000 0000 0000 0000 0000 0010 0000 0000]

Here is the caller graph for this function:

◆ GPIO_SetPinMode()

void GPIO_SetPinMode	(	GPIO_TypeDef *	GPIOx,
		uint32_t	Pin,
		uint32_t	Mode
	)

Set the mode of the pin. See GPIOx_MODER.

Parameters

[in]	GPIOx	GPIO Handler
[in]	Pin	[e.g. pin 8 is 0b 0000 0000 0000 0000 0000 0001 0000 0000]
[in]	Mode	[0 - Input, 1 - Output, 2 - Alternate, 3 - Analog]
