uart.h File Reference

#include <stdint.h>
#include "stm32h7xx.h"

Include dependency graph for uart.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	UART3_TX   (1U << 8)
#define	USART3_EN   (1U << 18)
#define	USART3_WIDTH_8b   (0U << 0)
#define	USART3_PARITY_NONE   (0U << 0)
#define	USART3_STOPBITS_1   (0U << 0)
#define	USART3_DUPLEX_FULL   (0x3 << 3)

Functions
uint16_t	UARTx_ComputeDivider (uint32_t PerpihClock, uint32_t Baudrate)
void	UARTx_Config (USART_TypeDef *USARTx, uint32_t DataWidth, uint32_t Parity, uint32_t StopBits)
void	UARTx_SetBaudrate (USART_TypeDef *USARTx, uint32_t PeriphClock, uint32_t Baudrate)
void	UARTx_Write (USART_TypeDef *USARTx, uint8_t val)
void	UARTx_SetTransferDirection (USART_TypeDef *USARTx, uint32_t Direction)
void	USART3_Tx_Init (void)

Macro Definition Documentation

UART3_TX

#define UART3_TX   (1U << 8)

USART3_DUPLEX_FULL

#define USART3_DUPLEX_FULL   (0x3 << 3)

USART3_EN

#define USART3_EN   (1U << 18)

USART3_PARITY_NONE

#define USART3_PARITY_NONE   (0U << 0)

USART3_STOPBITS_1

#define USART3_STOPBITS_1   (0U << 0)

USART3_WIDTH_8b

#define USART3_WIDTH_8b   (0U << 0)

Function Documentation

UARTx_ComputeDivider()

uint16_t UARTx_ComputeDivider	(	uint32_t	PerpihClock,
		uint32_t	Baudrate
	)

USART generic baudrate divider calculation method.

Parameters

[in]	PeriphClock	Peripheral Clock frequency [Hz]
[in]	Baudrate	Selectected baudrate for USART
[out]	BaudDiv	Calculated baudrate divider based on clock and desired baudrate

Here is the caller graph for this function:

UARTx_Config()

void UARTx_Config	(	USART_TypeDef *	USARTx,
		uint32_t	DataWidth,
		uint32_t	Parity,
		uint32_t	StopBits
	)

USART generic configuration method.

Parameters

[in]	USARTx	USART Handler
[in]	DataWidth	Width of data (refer to USARTx_CR1)
[in]	Parity	Enable of disable parity check (refer to USARTx_CR1)
[in]	StopBits	Number of stop bits (refer to USARTx_CR2)

Here is the caller graph for this function:

UARTx_SetBaudrate()

void UARTx_SetBaudrate	(	USART_TypeDef *	USARTx,
		uint32_t	PeriphClock,
		uint32_t	Baudrate
	)

USART generic baudrate selection method.

Parameters

[in]	USARTx	USART Handler
[in]	PeriphClock	Peripheral Clock frequency [Hz]
[in]	Baudrate	Selectected baudrate for USART

Here is the call graph for this function:

Here is the caller graph for this function:

UARTx_SetTransferDirection()

void UARTx_SetTransferDirection	(	USART_TypeDef *	USARTx,
		uint32_t	Direction
	)

USART generic tranmission selection method.

Parameters

[in]	USARTx	USART Handler
[in]	Direction	Transmission direction [Half Duplex, Full Duplex] (refer to USARTx_CR1)

Here is the caller graph for this function:

UARTx_Write()

void UARTx_Write	(	USART_TypeDef *	USARTx,
		uint8_t	val
	)

USART generic write method.
Applicable for both cases, when FIFO is disabled or enabled.

Parameters

[in]	USARTx	USART Handler
[in]	val	Value to be sent over USART (refer to USARTx_ISR and _TDR)

Here is the caller graph for this function:

USART3_Tx_Init()

void USART3_Tx_Init

(

void

)

USART3 initialization for transmission purposes.
For STM32H723 nucleo board, following pins are used:

• PD8 for Tx
• PD9 for Rx

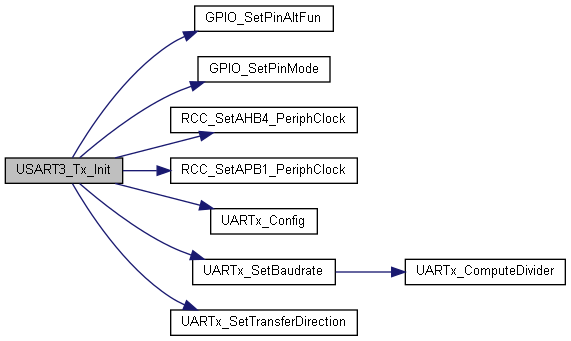

Here is the call graph for this function:

Here is the caller graph for this function:
